Who Can Help Us Unlock the Future: A Journey into IoT Enactment?
1- History and Evolution of IoT:
The first internet-connected devices were simple appliances such as vending machines and ATMs, which were connected to the internet to enable remote monitoring and maintenance. However, as technology progressed, more complex devices such as home appliances, cars, and even entire cities became connected to the internet.
The development of wireless technology, such as Bluetooth and Wi-Fi, made it possible for devices to communicate with each other without the need for wired connections. This led to the development of smart homes and wearable devices that could be controlled and monitored remotely.In recent years, the growth of IoT has exploded. The number of connected devices is expected to reach 50 billion by 2020, and the market for IoT devices and services is expected to reach $267 billion by 2020.
The evolution of IoT has also led to the development of new technologies such as artificial intelligence and machine learning. These technologies enable devices to learn and adapt to their environments, making them more effective and efficient.
The future of IoT is bright, with the potential to transform industries such as healthcare, agriculture, and transportation. However, there are also concerns about security and privacy, as the more devices that are connected to the internet, the more vulnerable they become to cyber attacks.In conclusion, the history and evolution of IoT have been remarkable, and its potential is enormous. However, it is important to address the security and privacy concerns to ensure that the benefits of IoT are not outweighed by the risks.
2- How IoT works? Important Phases:
The Internet of Things (IoT) refers to the network of interconnected physical devices, vehicles, appliances, and other objects embedded with sensors, software, and network connectivity, enabling them to collect and exchange data. IoT involves several phases from data ingestion to data analysis and prediction. Let’s go through each phase:
- Data Ingestion:
In this phase, IoT devices or sensors collect data from their surroundings. These devices can include various types of sensors such as temperature, humidity, motion, light, and more. The collected data is typically in the form of sensor readings, images, audio, or any other relevant data format.
- Data Transmission:
- Data Processing:
In this phase, the collected data is processed and analyzed to extract meaningful information. This can be done locally on the IoT device itself, at the edge (gateway devices), or in the cloud. Data processing may involve filtering, aggregation, transformation, and other computational tasks to prepare the data for further analysis.
- Data Visualization:
Once the data is processed, it can be visualized in a human-readable format. Data visualization tools and techniques are used to represent the processed data in the form of charts, graphs, dashboards, or any other visual representation. Visualization helps users understand and interpret the data more easily.
- Data Analysis:
Data analysis involves applying various algorithms and techniques to uncover patterns, insights, and trends within the collected data. This phase can include statistical analysis, machine learning, and data mining techniques to extract valuable information from the data. The analysis can be performed in real-time or on historical data, depending on the specific use case.
- Data Prediction:
Based on the analysis results, predictive models can be built to forecast future trends or make predictions. Machine learning algorithms can be trained on historical data to learn patterns and make predictions about future outcomes. These predictions can assist in decision-making, optimization, or automation processes.
It’s important to note that these phases are not necessarily linear and can overlap or occur concurrently. The specific implementation and architecture of an IoT system may vary depending on the use case, scalability requirements, and available resources.
3- What about Architecture?
IoT architecture consists of various components and layers that work together to enable the functioning of the system. Here are the main architectural components and layers in an IoT system:

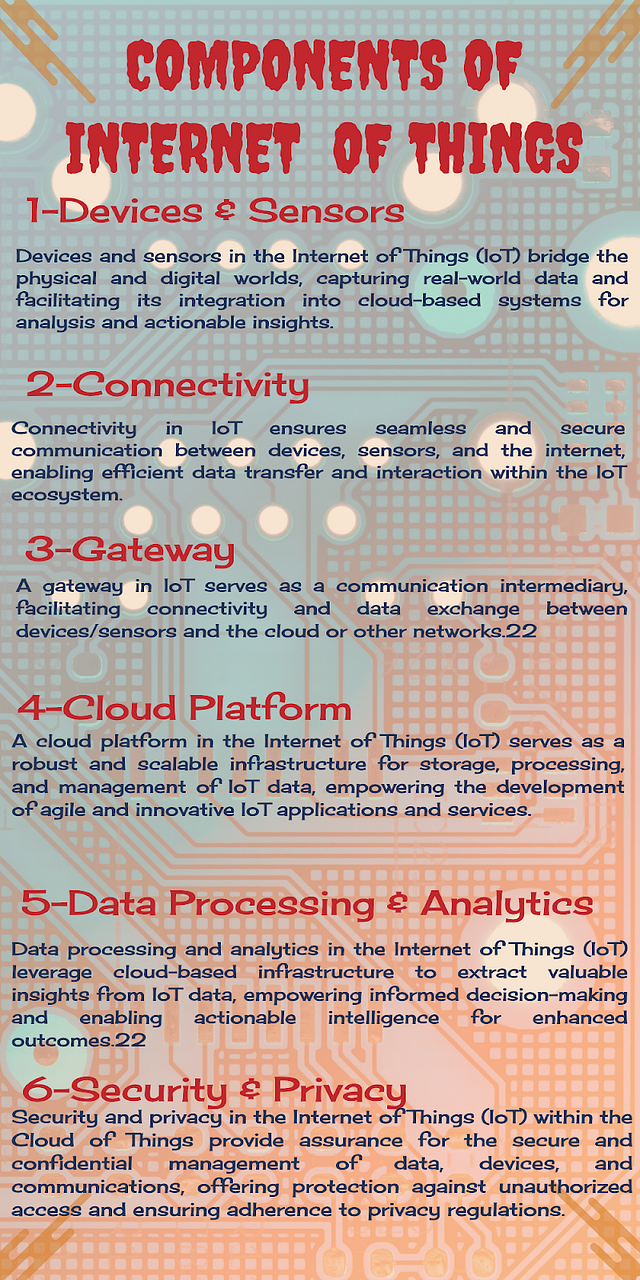

a- What are its Architectural Components?
The architectural components of an IoT system are the fundamental building blocks that collectively enable the functioning of the system. These components work together to facilitate data collection, communication, processing, analysis, and application development within the IoT ecosystem. Here are the key architectural components of an IoT system:
- Devices and Sensors:
The devices and sensors form the physical layer of the IoT architecture. These can include a wide range of devices such as sensors, actuators, embedded systems, wearables, and more. They collect data from the environment and interact with the physical world.
- Connectivity:
The connectivity layer enables the communication between devices and the transfer of data. It includes various communication protocols such as Wi-Fi, Bluetooth, Zigbee, cellular networks (2G, 3G, 4G, or 5G), LoRaWAN (Low Power Wide Area Network), and more. This layer ensures that the devices can transmit data reliably and securely.
- Gateway:
The gateway layer acts as a bridge between the devices/sensors and the cloud or central server. It can perform data filtering, aggregation, and preprocessing tasks. Gateways often have more processing power and storage capacity compared to the devices, allowing them to handle more advanced tasks and reduce the amount of data sent to the cloud.
- Cloud Platform:
The cloud platform serves as the central hub for data storage, processing, and management. It receives data from the devices and gateways and provides scalable storage infrastructure for large volumes of data. The cloud platform also hosts the necessary software and tools for data processing, analytics, and visualization.
- Data Processing and Analytics:
This layer involves the processing and analysis of the collected data. It may include real-time stream processing, batch processing, data mining, machine learning algorithms, and other techniques to extract valuable insights from the data. The processed data can then be used for various purposes, such as monitoring, decision-making, or generating predictions.
- Security and Privacy:
IoT systems require robust security measures to protect the devices, data, and communications. This layer includes authentication mechanisms, encryption techniques, access controls, and other security practices to ensure data integrity and privacy. It also involves measures to prevent unauthorized access or tampering with the IoT devices and data.
It’s important to note that the specific architecture of an IoT system can vary depending on the use case, scale, and specific requirements. Different IoT platforms and frameworks may have their own variations and implementations of these components and layers.
b- What are its Architectural Layers?
The architectural layers of an IoT system provide a structured framework for organizing and managing the different functionalities and components of the system. These layers work together to enable data ingestion, transmission, processing, analysis, visualization, and application development. Each layer plays a distinct role in the overall functioning of the system. Here are the key architectural layers of an IoT system:
i- Three-Layered Architecture
The three-layer architecture of IoT, also known as the IoT protocol stack, provides a simplified framework for understanding the different layers involved in an IoT system. The three layers are as follows:
- Perception Layer:
The perception layer, also known as the physical layer, is the lowest layer in the IoT architecture. It comprises the physical devices, sensors, and actuators that interact directly with the physical world. These devices can include temperature sensors, motion detectors, cameras, smart appliances, and more. The perception layer is responsible for collecting data from the environment and converting it into digital signals that can be processed further.
- Network Layer:
The network layer sits above the perception layer and handles the communication between the devices and the cloud or central server. It encompasses various networking technologies, protocols, and infrastructure that enable the transfer of data. This layer includes wireless and wired communication technologies such as Wi-Fi, Bluetooth, Zigbee, cellular networks, Ethernet, and more. The network layer ensures reliable and secure data transmission between the devices and other layers of the IoT system.
- Application Layer:
The application layer is the topmost layer in the IoT architecture and represents the layer where data processing, analysis, and user interaction occur. It includes cloud platforms, software applications, and user interfaces that enable data storage, processing, visualization, and control. The application layer utilizes data received from the perception and network layers to provide insights, make decisions, and trigger actions. This layer can encompass data analytics, machine learning, dashboards, web or mobile applications, and other software components.
By dividing the IoT architecture into these three layers, the perception layer handles data collection, the network layer focuses on data transmission, and the application layer handles data processing and user interaction. This three-layer architecture provides a conceptual framework for understanding and designing IoT systems while allowing for flexibility and scalability in implementation.
ii- Four-Layered Architecture
The four-layered architecture of the Internet of Things (IoT) provides a structured framework for understanding the components and functionalities involved in IoT systems. This architecture divides the system into four distinct layers: the perception layer, the network layer, the processing layer, and the application layer. Each layer plays a vital role in collecting data, facilitating communication, processing information, and enabling the development of IoT applications. This architecture helps in organizing and managing IoT systems effectively, enabling seamless integration, scalability, and interoperability within the IoT ecosystem.
- Devices or the Perception Layer:
The perception layer consists of physical devices and sensors that are responsible for collecting data from the environment. These devices can include various IoT devices such as sensors, actuators, wearables, and other embedded systems. They interact with the physical world, capturing data such as temperature, humidity, motion, or any other relevant information.
- Internet Gateways:
The internet gateways form the second layer in the architecture. They act as a bridge between the devices or sensors in the perception layer and the higher layers of the IoT system. Gateways receive data from the devices, perform initial processing and protocol translation if necessary, and transmit the data to the next layer. They provide connectivity options for different communication protocols such as Wi-Fi, Bluetooth, Zigbee, or cellular networks to establish reliable and secure communication.
- Edge Computing:
In the four-layered architecture of the Internet of Things (IoT), edge computing plays a crucial role within the processing layer. It involves the localized processing and analysis of data at or near the edge of the network, closer to the IoT devices themselves. By performing tasks such as data filtering, aggregation, and local analytics, edge computing reduces the need to transmit all data to the cloud or data center for processing. This approach enables faster response times, reduces network bandwidth requirements, and allows for real-time or near-real-time processing of data. Edge computing enhances the efficiency of the IoT system by enabling immediate insights and decentralized decision-making capabilities, while also reducing reliance on cloud-based processing and enhancing the overall performance of the IoT ecosystem.
- Cloud or Data Center:
The cloud or data center forms the topmost layer of the architecture. This layer is responsible for storing, processing, and managing the vast amount of data collected from the devices. It provides scalable storage infrastructure, computational resources, and services to handle large volumes of data. The cloud or data center hosts software applications, data processing engines, analytics tools, and other services for advanced data analysis, visualization, and application development. It enables long-term data storage, complex analytics, and integration with other systems.
The 4-layer architecture of IoT divides the system into the perception layer (devices), internet gateways, edge computing, and the cloud or data center. This layered approach allows for distributed processing, efficient data management, and scalable infrastructure in IoT systems.
iii- Five-Layered Architecture:
The five-layered architecture of the Internet of Things (IoT) offers a systematic approach to designing and managing IoT systems. It includes the perception layer, which captures raw data from physical devices and sensors, the transport layer, ensuring reliable communication between layers, the processing layer, which analyzes and transforms the collected data, the application layer, enabling user interaction and insights utilization, and the business layer, integrating IoT with existing processes and generating value. This architecture provides a structured framework for efficient data collection, processing, application development, and business integration, empowering organizations to leverage the full potential of IoT technology.
- Perception Layer:
The perception layer, also known as the physical layer, encompasses the physical devices, sensors, and actuators that collect data from the physical environment. These devices can include various IoT devices such as temperature sensors, motion detectors, cameras, and more. The perception layer is responsible for capturing raw data and converting it into digital signals.
- Transport Layer:
The transport layer focuses on the communication and connectivity between the perception layer and other layers of the IoT system. It includes various networking technologies, protocols, and infrastructure that enable the transfer of data. This layer ensures reliable and secure transmission of data from the perception layer to higher layers such as gateways or edge devices.
- Processing Layer:
The processing layer is responsible for processing and analyzing the collected data. It involves tasks such as data filtering, aggregation, transformation, and analytics. This layer can include edge devices or gateways that perform local processing, as well as cloud-based processing capabilities. The processing layer prepares the data for further analysis and application.
- Application Layer:
The application layer encompasses the applications, services, and interfaces that interact with the IoT system. It involves utilizing the processed data to provide meaningful insights, control devices, and enable user interaction. This layer can include various applications such as dashboards, visualization tools, monitoring systems, and other software components that enable users to access and utilize the IoT system’s capabilities.
- Business Layer:
The business layer represents the topmost layer in the architecture, focusing on the business-oriented aspects of the IoT system. It involves integrating the IoT system with existing business processes, decision-making, and value generation. This layer encompasses business logic, workflow management, and integration with other enterprise systems. It allows organizations to derive value from the IoT data, make informed decisions, and optimize their operations based on the insights gained from the IoT system.
The 5-layer architecture of IoT divides the system into the perception layer, transport layer, processing layer, application layer, and business layer. This layered approach provides a structured framework for organizing and managing different aspects of an IoT system, from data collection to decision-making and business integration.
iv- Seven- Layered Architecture:
The 7-layer architecture of the Internet of Things (IoT) offers a holistic approach to designing and managing IoT systems. The perception layer captures data from physical devices, while the connectivity layer ensures reliable communication with the rest of the system. The edge computing layer brings processing capabilities closer to the data source for real-time analysis. The processing layer filters, aggregates, and transforms data for advanced analytics. The application layer utilizes the processed data for developing user interfaces and services. The business layer integrates IoT with business processes, creating value and optimization opportunities. Lastly, the security layer safeguards devices, communication channels, and data from potential threats. This architecture provides a comprehensive framework for efficient data management, secure communication, and seamless integration within the IoT ecosystem.
- Perception Layer:
The perception layer includes the physical devices, sensors, and actuators that collect data from the physical environment. These devices can range from simple sensors to complex IoT devices. They capture data such as temperature, humidity, motion, or any other relevant information from the surrounding environment.
- Connectivity Layer:
The connectivity layer focuses on establishing and managing the communication between the IoT devices and the rest of the system. It encompasses various communication protocols and technologies such as Wi-Fi, Bluetooth, Zigbee, cellular networks, or other wireless or wired connections. This layer ensures reliable and secure data transmission between the devices and other layers of the IoT system.
- Edge Computing Layer:
The edge computing layer is responsible for performing data processing and analysis at or near the edge devices. It brings computing capabilities closer to the data source, reducing latency, bandwidth usage, and dependence on cloud processing. Edge computing enables real-time or near-real-time data processing, making it suitable for time-sensitive applications and scenarios where cloud connectivity may be limited.
- Processing Layer:
The processing layer involves the processing and analysis of the collected data. It includes tasks such as data filtering, aggregation, transformation, and advanced analytics. This layer can encompass both edge processing and cloud-based processing, depending on the specific requirements of the IoT system. It prepares the data for further utilization in applications and decision-making.
- Application Layer:
The application layer focuses on utilizing the processed data to develop applications, services, and user interfaces that interact with the IoT system. It includes various software components such as data visualization tools, dashboards, monitoring systems, and control interfaces. This layer enables users to access and leverage the insights and functionalities provided by the IoT system.
- Business Layer:
The business layer involves integrating the IoT system into the broader business processes and operations. It aligns the IoT system with the organization’s goals, enabling value creation and optimization. This layer encompasses business logic, workflow management, and integration with other enterprise systems. It allows organizations to leverage IoT data to make informed decisions, improve efficiency, and create new business opportunities.
- Security Layer:
The security layer focuses on ensuring the integrity, confidentiality, and availability of the IoT system and its data. It includes mechanisms for authentication, authorization, data encryption, access control, and intrusion detection. This layer safeguards the IoT devices, the communication channels, and the data against potential threats and vulnerabilities, addressing the security challenges associated with IoT deployments.
The 7-layer architecture of IoT provides a comprehensive framework for organizing and managing various aspects of an IoT system, including data collection, communication, processing, applications, business integration, and security considerations.

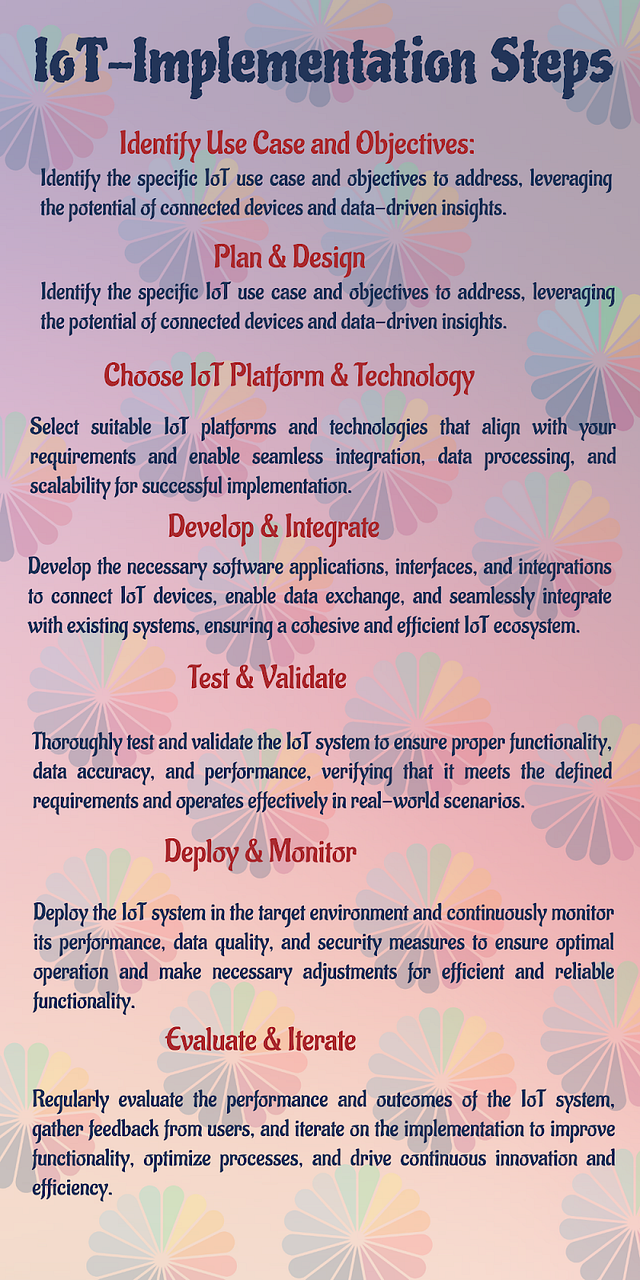

4- What are its Implementation Steps?
Implementing an IoT system involves several steps to ensure successful deployment and operation. Here are the general steps involved in IoT implementation:
- Identify Use Case and Objectives:
Start by identifying the specific use case or problem you want to address with the IoT system. Define your objectives, whether it’s improving efficiency, enhancing customer experience, optimizing resource utilization, or any other goal. Clearly outline the expected outcomes to guide the implementation process.
- Plan and Design:
Develop a comprehensive plan and design for your IoT system. This includes determining the required devices, sensors, and infrastructure, as well as selecting suitable communication protocols, networking technologies, and data storage solutions. Consider factors such as scalability, security, and integration with existing systems during the planning phase.
- Choose IoT Platform and Technologies:
Select an appropriate IoT platform or framework that aligns with your requirements and objectives. Evaluate different options based on factors like data processing capabilities, analytics features, scalability, ease of integration, and support for your chosen devices and communication protocols. Choose the technologies that best fit your use case and desired outcomes.
- Develop and Integrate:
Develop the necessary software applications, interfaces, and integrations to connect your devices, sensors, and other components. This may involve developing firmware for IoT devices, building APIs or protocols for data exchange, and creating user interfaces for data visualization and control. Integrate the IoT system with existing IT infrastructure and business processes as needed.
- Test and Validate:
Conduct thorough testing and validation of the IoT system before deployment. This includes testing device connectivity, data transmission, data processing, analytics algorithms, and user interfaces. Identify and rectify any issues or bugs, and ensure that the system operates as expected in different scenarios and conditions.
- Deploy and Monitor:
Once the system passes testing and validation, deploy it in the target environment. Install and configure the devices, gateways, and infrastructure as planned. Implement proper security measures to protect data and devices. Continuously monitor the system’s performance, data quality, and overall functionality to ensure optimal operation.
- Evaluate and Iterate:
Regularly evaluate the performance and outcomes of your IoT system against the defined objectives. Collect feedback from users and stakeholders to identify areas for improvement. Use data analytics and insights gained from the IoT system to refine processes, make data-driven decisions, and identify opportunities for innovation and optimization.
It’s important to note that the specific implementation steps may vary depending on the complexity of the IoT system, industry-specific requirements, and the chosen technologies. Collaboration among stakeholders, domain experts, and technology providers is crucial throughout the implementation process to ensure a successful IoT deployment.
5- Concluding Lines
Implementing an IoT system requires careful planning, design, and execution. By following the steps outlined above, you can successfully deploy an IoT solution that addresses your specific use case and achieves your desired objectives. Remember to prioritize security, scalability, and integration with existing systems during the implementation process. Continuously monitor and evaluate the system’s performance to make necessary improvements and leverage the insights gained from the IoT data. With a well-executed implementation, you can unlock the transformative potential of IoT to enhance efficiency, drive innovation, and create new opportunities in your organization or industry.
